Guangzhou 300L 500L 1000L CE standard perfume freezing filter machine SUS perfume making
machine parfume filling machine
1.Introduction
The machine is specially used for clarification and filtration of liquid such as cosmetics and perfume etc. after freezing;
it is an ideal device for filtering perfume in cosmetic factories. It is made of high quality stainless steel. The pneumatic
diaphragm imported from USA is adopted for pressure source to carry out positive pressure filtration.The connecting
pipes are sanitary polishing pipes. Which completely adopt rapid installation type connection form, with convenient
assembly, disassembly and cleaning.
2.Technical parameter
| Model | AL-XS-LDJ-200L |
| Freezing Capacity | Standard 100L/200L/300L/500L/1T,customized |
| Voltage | 380V/50Hz |
| Freezing Temperature | -5-15℃ |
| Refrigerating Fluid | R22 |
| Air Pressure | 0.5-0.6Mpa |
| Filtration Precision | 0.2um |
3.Features
---Stainless steel heat preservation freezing tank and titanium metal coil pip
---Freezing unit (imported from France)
---Anticorrosive pneumatic diaphragm pump (imported from USA)
---Polypropylene micro porous filtration film
---Stainless steel moveable supporter
---Sealing type electric control system and sanitary pipe fittings and valves

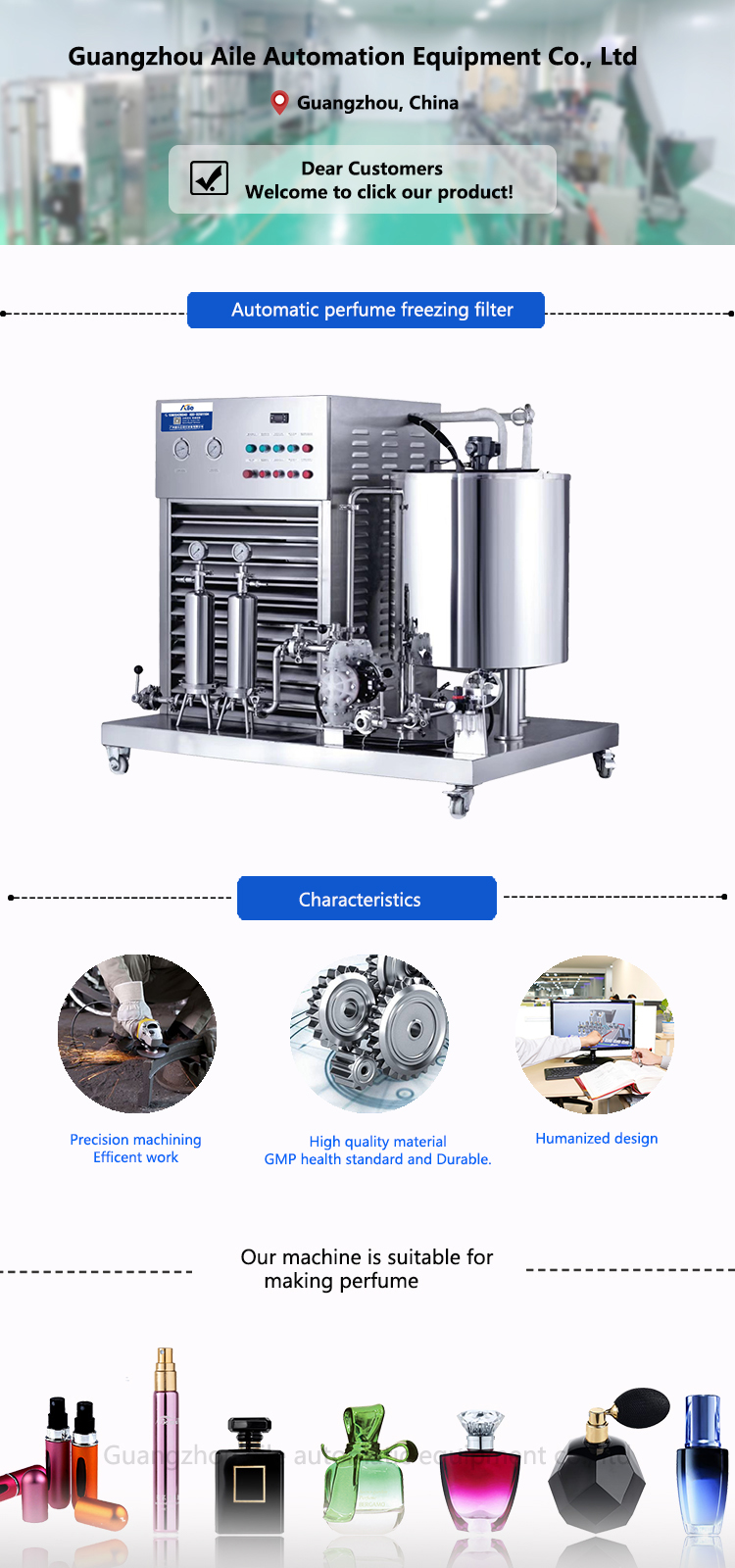

4.Detaied images
