AILE Automatic BOV Aerosol Filling Machine
AL-BOV-A
1 case
3case /
China
45Day
- Good quality
- Reasonable price
- Great commonality machines
- Long term business parnter
- Fast delivery
- Customized design
- Reasonable price
- Great commonality machines
- Long term business parnter
- Fast delivery
- Customized design
Quantity
AILE Automatic BOV Aerosol Filling Machine
Technical parameter:
| Model | AL-EYZD |
| Sealing diameter(mm) | φ26.5-φ27.5 |
| Sealing depth(mm) | 5.0-6.0 |
| Applicable value | 1"(25.4mm) |
| Applicable aerosol can | height:80-250mm |
| diameter:35-70mm | |
| Liquid repeat filling accuracy | ≤±1.0% |
| Propellant repeat filling accuracy | ≤±1% |
| Working pressure (MPa) | 0.5-0.7Mpa |
| Maximum air consumption | 1.2m³/min |
| Production capacity | 1500-1800Cans/h |
| Dimensions(mm) | 1300X1000X1750 |
| Weight(kg) | as per |
| Inflating accuracy | ≤±0.03Mpa |
| Sealing accuracy | ≤3‰ |

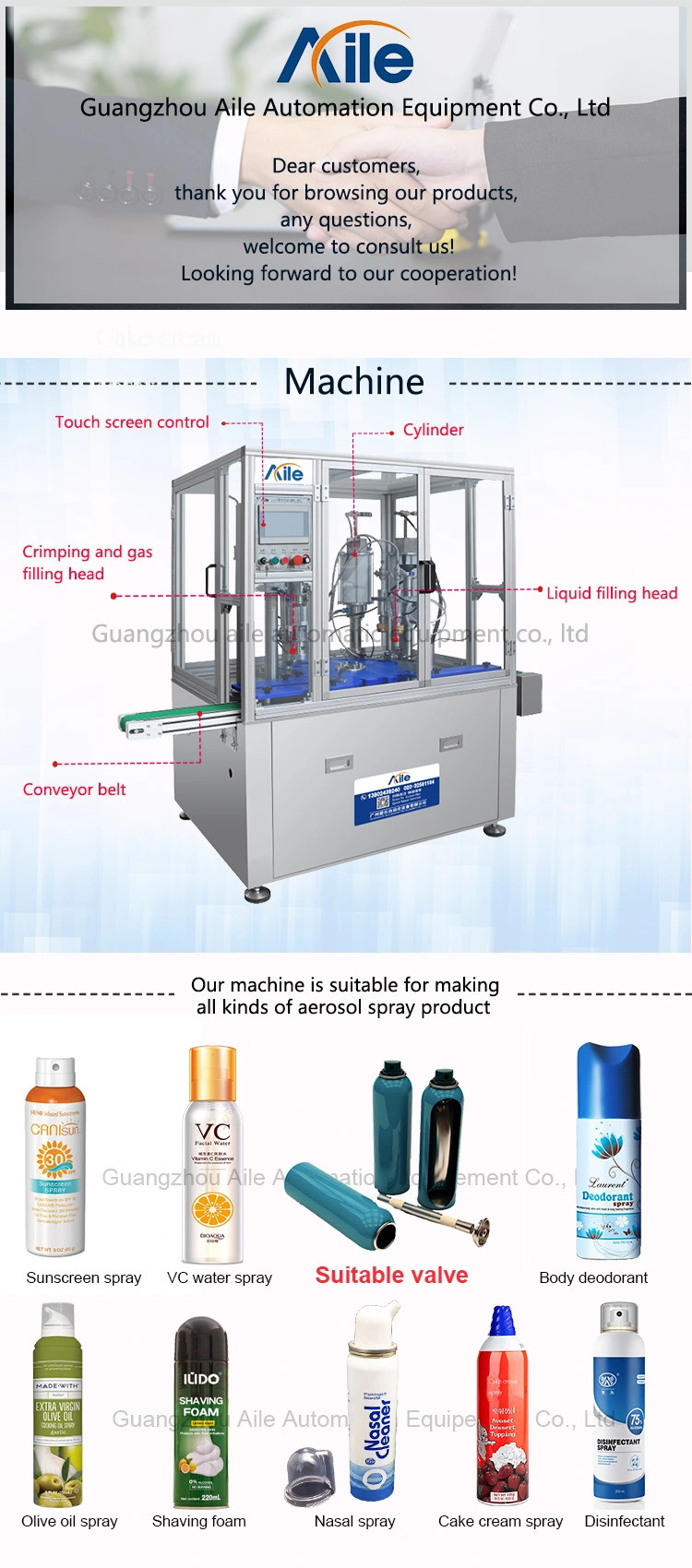

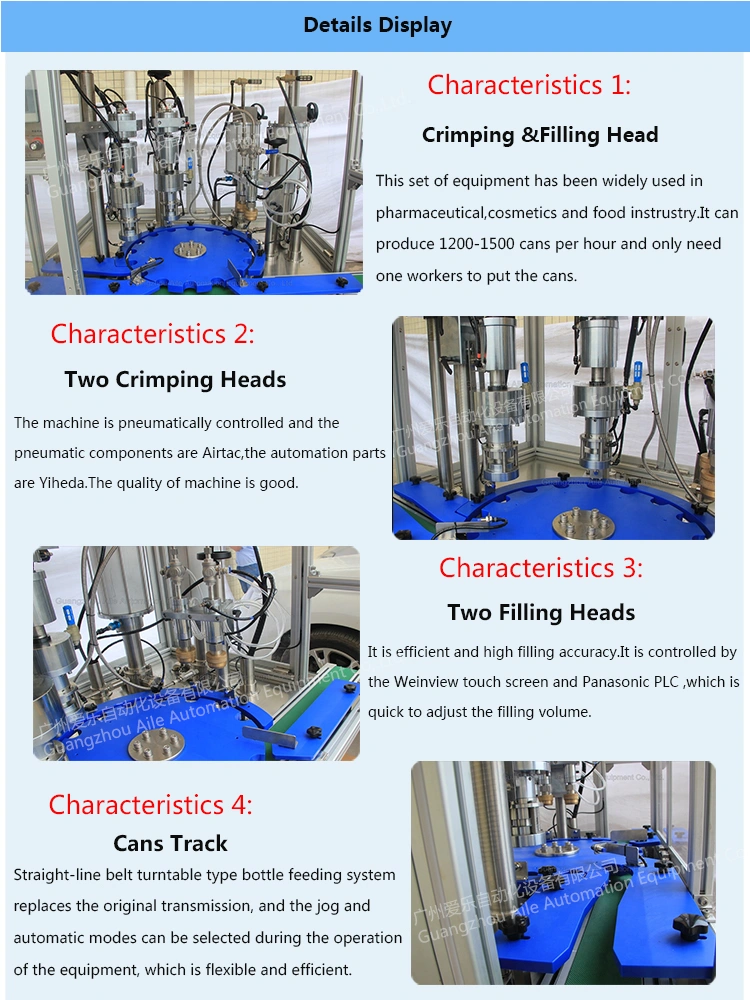

Function:
This machine is integrated few machines, such as belt conveyor, aerosol filling machine, weighing machine, water
bath leak testing machine, capping machine. With stainless steel 304 and 316, the machine could be spend more
shed life than that of those which using another material. Turn table is adjustable for speed and customized for
your demand. This machine is newly design of our company. It is the ideal choice for small and medium-sized enterprises.
