US $45000.00 - US $70000.00 / set
One operation can complete the automatic forming and feeding of 12 boxes of products.The film thickness is adjusted by localization and the film thickness is uniform
1.Features
1.The molding tool die is made of stainless steel to avoid secondary pollution during crystal mask forming.
2. Touch-screen human-machine interface control, brain width and thickness control, speed change.
3. The appearance of the whole machine adopts an aluminum profile 304 stainless steel wiredrawing board combination, with suspension touch screen, high-grade atmosphere.

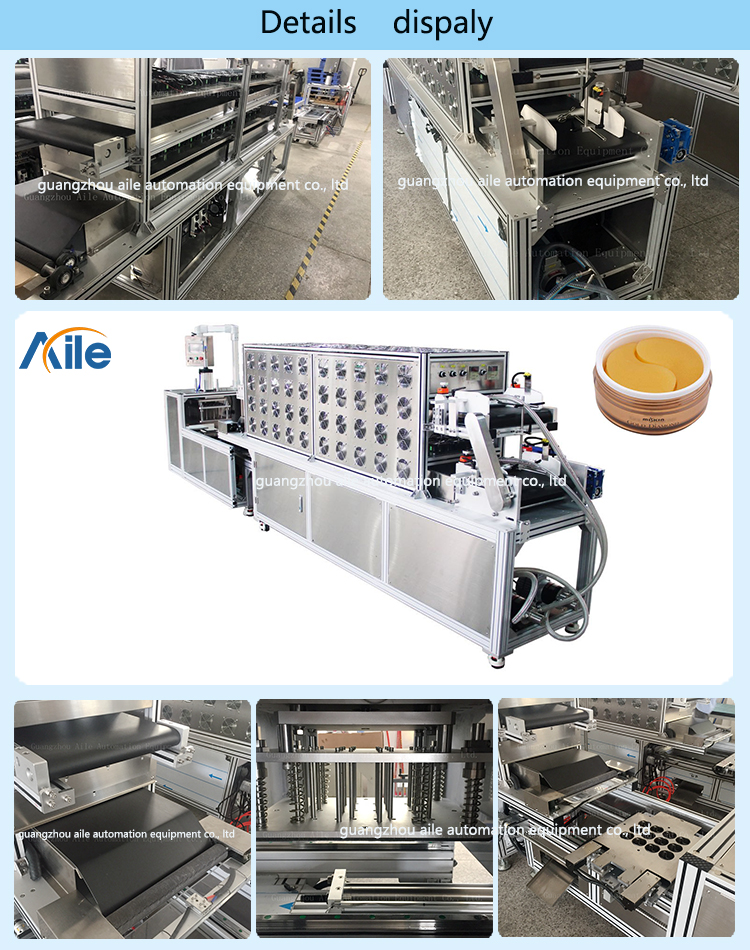

4. This machine is composed of automatic forming of 12 boxes of products in a single operation; The mask forming machine feeds the material from the upper and lower layers,
after cooling by the cooling fan, the mask is formed quickly, and then meets at the outlet, automatically multi-lamination, automatic cutting, automatically sent to the press knife die, cut the material, and put it into the eye mask box.
2.Technical parameter:
| Number of mask processing | 4-60pieces/bottle(customized) |
| Capacity | 600bottles/h(12bottles/time) |
| Power | Single phase 220VAC,50Hz |
| Configuration of power | 6.5KW |
| Air source | 6-8kgf/cm² |
| Air comsumption | 20L/min |
| Weight | 1200kg |
| Dimension | 5000*880*1600 |
