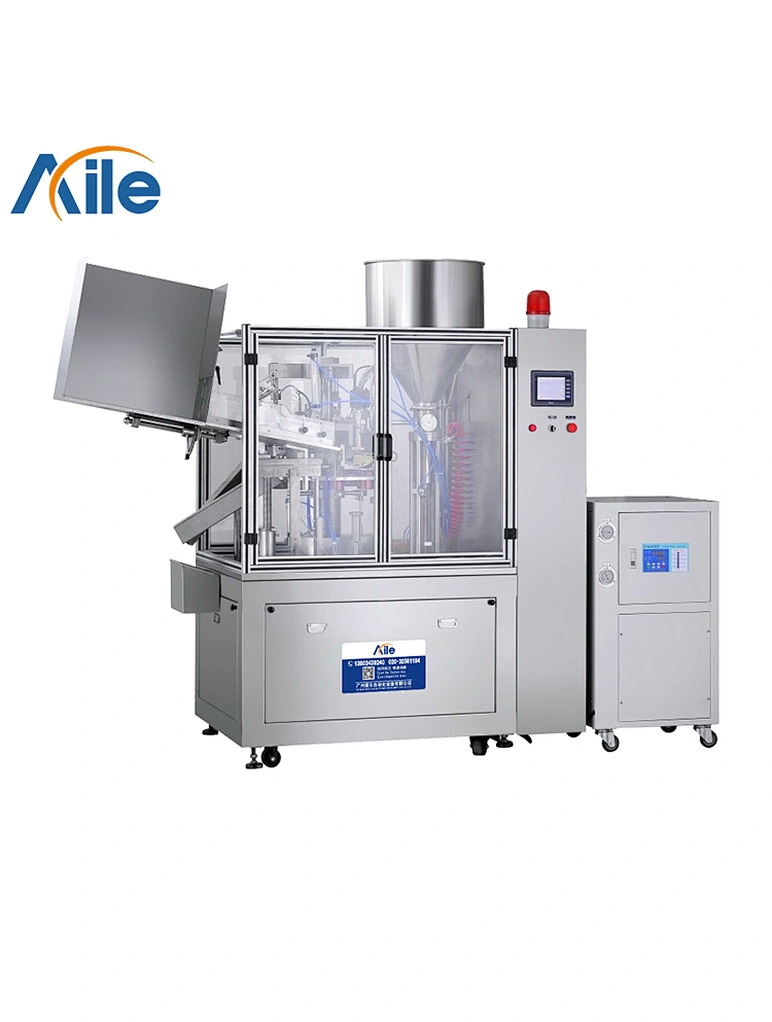

AILE Automatic inner heating type tube filling&sealing machine
price
US $30000.00 - US $60000.00 / set
AL-FWJ-A
1 set
Automatic Constant Temperature Filling Machine is suitable for filling materials with high viscosity or bad fluidity. It adopts pneumatic filling, electric heating for the hopper and tube, also assembled with mixing functions. The whole machine is with easy cleaning, convenient operation, and conforms to GMP standard.
Quantity
1.Introduction:
Automatic Constant Temperature Filling Machine is suitable for filling materials with high viscosity or bad fluidity. It adopts pneumatic filling, electric heating for the hopper and tube, also assembled with mixing functions. The whole machine is with easy cleaning, convenient operation, and conforms to GMP standard.
2.Technical parameter:
| Filling Range | 30-250ml(can be customized) |
| Filling speed | 20-35 tubes/min |
| Hopper Volume | 40KG(can be customized) |
| Air Source | 0.2-0.45 (mpa) |
| Mixing Speed | 10-60r/min |
| Mixing Power | 60W |
| Machine Material | SS304 for outside, material contact parts are SS316L. |
| Temperature | 0-95°C |
