US $80000.00 - US $150000.00 / set
Imported components, ensure the stability of the machine. Submersible filling with anti-drop filling head. The horizontal bottle clamping device makes the filling position more accurate.
This machine has advantages on perfect performance, easy operation, safe work, well-organized, convenient maintenance, and long-life use.

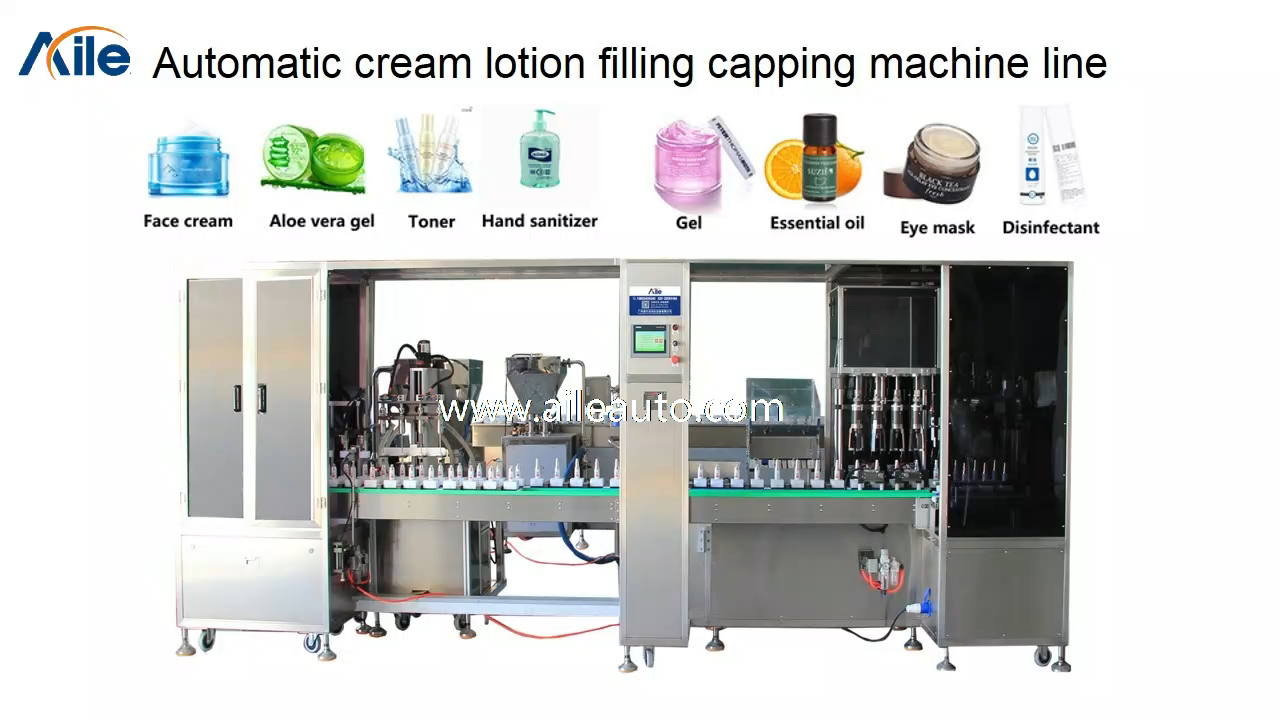

Introduction
This equipment can be used for the filling and screwing of high foaming agents, emulsions, creams, and other products, which can
effectively improve the capacity of the factory and reduce the labor intensity of the workers.
Equipped with a moving wheel, simple and easy to operate.

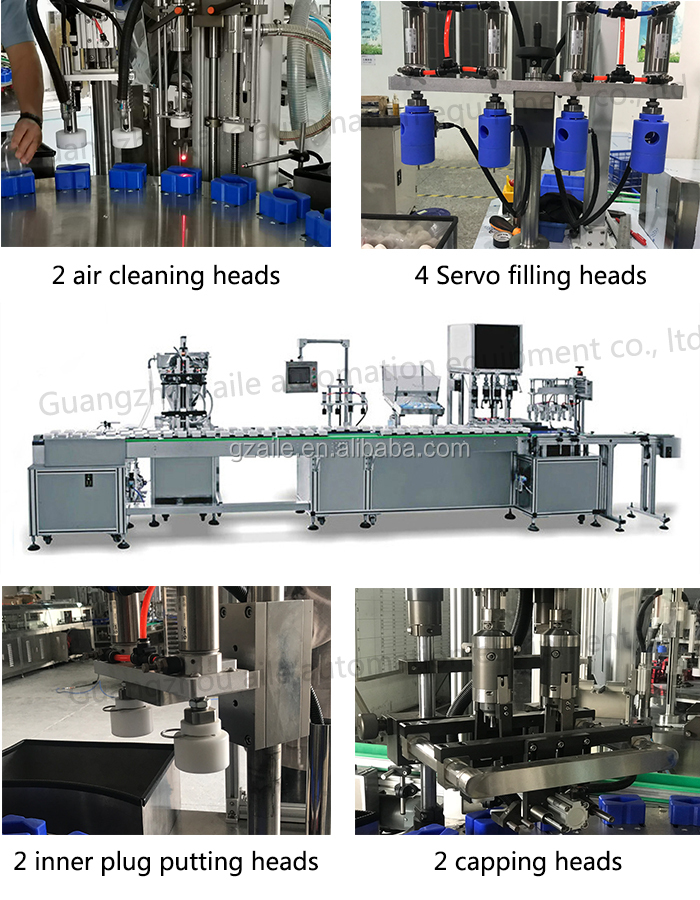

Working process
Manual putting bottles - Automatic air cleaning - Automatic filling - Manual putting top plug - Automatic pressing plug
- Manual putting outer cap - Automatic screwing outer cap -Automatic discharge of finished products
Technical parameter
Power: 220V – AC 2kw
Air resource : 4-5kgf/cm2
Filling accuracy: ±0.5g
Applicable volume: 5-150mL (can be customized to 500ml)
Production capacity: 2000-3000b/h
Dimension(L×W×H): 6000×1400×1850mm
