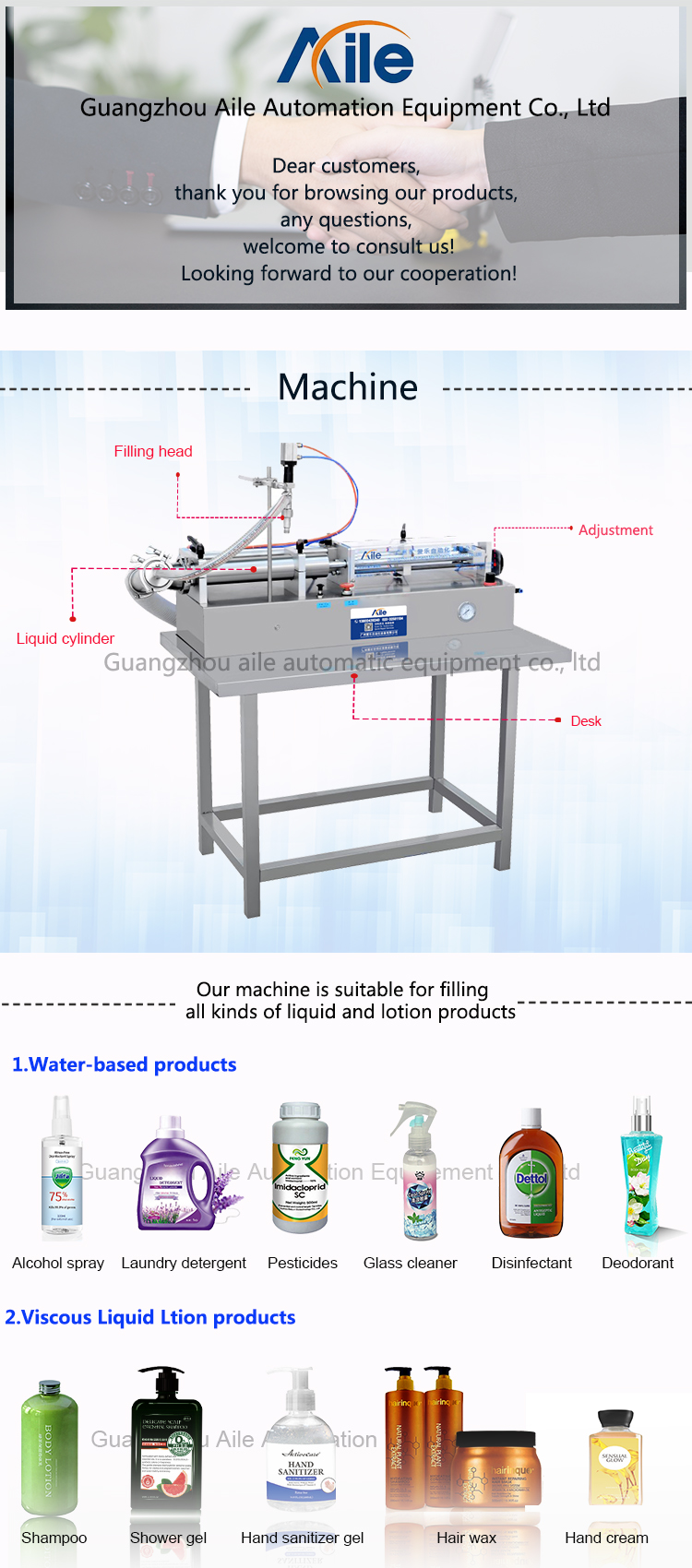

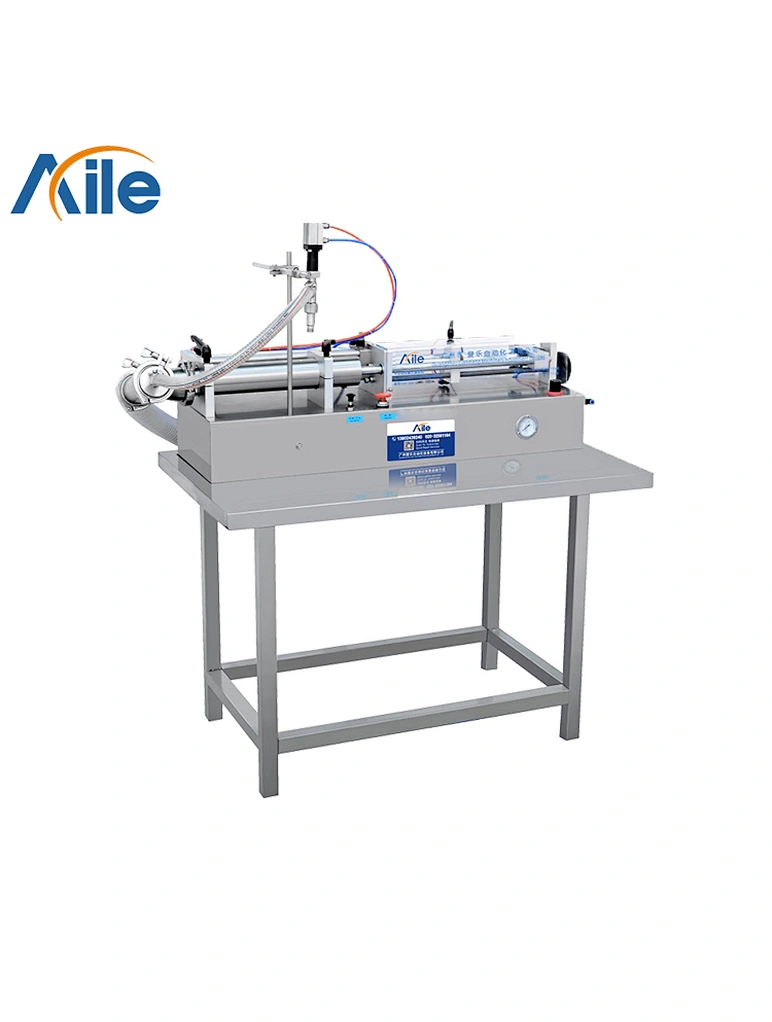

AILE Semi automatic horizontal self-suction filling machine
price
US $1000.00 - US $5000.00 / set
AL-WS
1 set
The machine applied with world-famous electrical and pneumatic components. High quality, high stability, long service life. All the parts of the machine are made of high-quality stainless steel.
Widely used in food and beverage, pharmaceutical, chemical, pesticide, chemical, oil, cosmetics, and other flowable liquids. In addition, can dive filling, the filling head can be inserted into the bottle filling, the filling head with the special leakage-proof device, filling more secure.
Semi-automatic Full Pneumatic Liquid Filling Machine (500-5000ml), Full Air Bottling Machine for Liquid has replaced the electricity control by pneumatic elements, so it is especially suitable for anti-explosion requirements
Widely used in food and beverage, pharmaceutical, chemical, pesticide, chemical, oil, cosmetics, and other flowable liquids. In addition, can dive filling, the filling head can be inserted into the bottle filling, the filling head with the special leakage-proof device, filling more secure.
Semi-automatic Full Pneumatic Liquid Filling Machine (500-5000ml), Full Air Bottling Machine for Liquid has replaced the electricity control by pneumatic elements, so it is especially suitable for anti-explosion requirements
Quantity
Features
1.All the contacted part with the filling material is high-quality stainless steel.
2.Fully in accordance with the GMP standard production and passed CE certification
3.Touch screen can be set according to the needs of customers in different languages
4.It has intuitive and convenient operation, measuring accurate, positioning precision
Technical parameter
| Model | Filling volume | Air consumptin | Net Weight | Dimensions(Unit:cm) |
| AL-150 | 5-150ml | 25L/min | 11kg | L92xW28xH40 |
| AL--250 | 10-250ml | 30L/min | 25kg | L102xW30xW40 |
| AL-500 | 30-500ml | 44L/min | 28kg | L108xW32xH41 |
| AL-1000 | 60-1000ml | 87L/min | 36kg | L128xW36xH41 |
| AL-2500 | 250-2500ml | 106L/min | 60kg | L130xW60xH51 |
| AL-5000 | 500-5000ml | 300L/min | 75kg | L130xW60xH51 |
